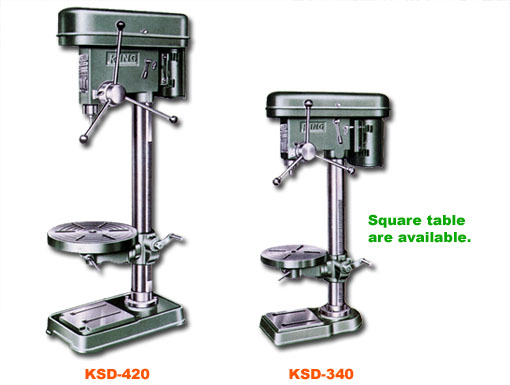

TYPE KSD-340 KSD-34M KSD-420
Center Of Spindle To Column 165mm 165mm 220mm
Drilling Capacity 13mm 19mm 25mm
Spindle Travel 80mm 80mm 125mm
Taper Of Spindle Nose J. T. No.6 M. T. No.2 M. T. No.3
Max, Distance
Spindle To Table		 Square 470mm 560mm 625mm
Round 440mm 530mm 585mm
Max, Distance Spindle To Base 630mm 710mm 830mm
Surface of LE Square 230 x 230mm 230 x 230mm 315 x 300mm
Round 290mm 290mm 390mm
Spindle Speeds 50 Hz 455 875 1460 2500 455 875 1460 2500 130 230 275 360 475
490 1075 1300 1940
60Hz 550 1050 1750 3000 550 1050 1750 3000 160 280 330 430 575
590 1290 1560 2330
Motor 1/4 Hp 4P 1/3 Hp 4P 1/2 Hp 4P
Machine Height 1025mm 1127mm 1370mm
Machine Weight 63 kg 64 kg 107 kg
*FLOOR TYPE "KSD-42H" ; INSTEAD SPECIAL COLUMN 300mm HIGHER THAN STANDARD TYPE "KSD-420".

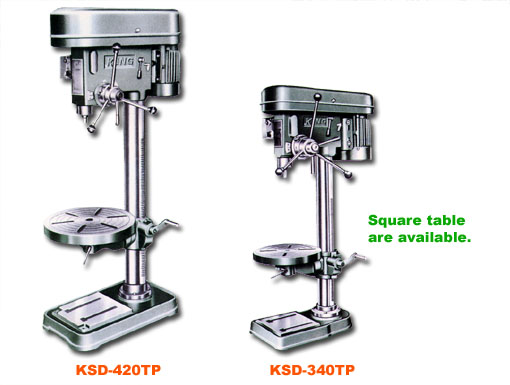

TYPE KSD-340TP KSD-420TP
Center Of Spindle To Column 168mm 220mm
Tapping Capacity 3-10mm 3-16mm
Drilling Capacity 13mm 25mm
Max, Distance Spindle To Table 440mm 460mm 585mm 625mm
Max, Distance Spindle To Base 613mm 820mm
Spindle Travel Tapping 75mm 115mm
Drilling 80mm 120mm
Taper Of Spindle Nose J. T. No.6 M. T. No.3
Surface Of Table 290ø 230 x 230mm 390ø 315 x 300mm
Spindle Speeds 50 Hz 235 330 540
1150 1400 2100		 130 230 275 360 475
490 1075 1300 1940
60 Hz 280 400 650
1350 1700 2500

160 280 330 430 575
590 1290 1560 2330
Motor 3ø 1/2 Hp 4P 3ø 1 Hp 4P
Machine Height 1025mm 1370mm
Machine Weight 70 kg 115 kg
